Ascom Myco™ 4 smartphone

The smartphone for all your professional needs

Consolidating the features and functions of several devices into a single rugged, disinfectant-ready, Android Enterprise Recommended smartphone, Myco 4 is the ideal interface for staff and management who are looking to maximize staff safety and efficiency at work.

The Ascom Myco™ 4 is more than just a phone

  • Helping you consolidate devices, improve operational efficiency and lower the total cost of ownership (TCO)
  • Giving you a tough, professional-grade smartphone that withstands the harsh demands of professional working environments
  • Helping staff feel safe and secure with the latest in personal alarm functionality
  • Ensuring mission-critical communication and collaboration where the right information is in the right hands at the right time
  • Ready for all types of public and private 5G networks; Public, Sliced, Private, NSA, and SA – tested with some of the major suppliers of 5G equipment
  • Comes with a built-in SIP client, addressing the current gap in voice communication within most private 5G networks

Speak to an Ascom expert

Get in touch
  • Technical specifications
  • Downloads

PLATFORM

OS: Android 13

CPU: Qualcomm 6490, 2.7 GHz Octa-core

Memory: 6 GB RAM, 128 GB Flash



SENSORS

Three-axis accelerometer

Three-axis gyroscope

Proximity sensor

Light sensor

Compass

Ascom IR location*



COMMUNICATIONS

WLAN: Wi-Fi 6E

Wi-Fi 802.11 a/b/g/n/ac/ax

Wi-Fi 802.11 k/r/v fast transition roaming

Wi-Fi 802.11 mc for location

Wi-Fi 802.11 w

Wi-Fi 802.11 u

Bluetooth: 5.2

GNSS*: GPS, GLONASS, Beidou, Galileo, SBAS

NFC: Forum Type 1-5



IP RATING

IP68: 1.5 m for 30 minutes



OPTICAL DEVICES

Front-facing camera: 8 MP

Rear-facing camera: 50 MP, 6120 x 8160 pixels, autofocus, flash

Multi-color top LED for indication

Barcode scanner: 1D / 2D barcodes SE4720*



BODY

Dimensions: 154.6 x 72.6 x 18.9 mm (6.08 x 2.85 x 0.74 in) with barcode reader, 154.6 x 72.6 x 13.1 mm (6.08 x 2.85 x 0.51 in) without barcode reader

Weight: 253 g (8.9 oz) with barcode reader, 233 g (8.2 oz) without barcode reader

4 Multi-Function Buttons: 1 on top and 3 on the sides



DISPLAY

Type: Full HD, 2160 x 1080

Size: 5.5"

Multi touch: Deca point capacitive touch

Protection: Corning® Gorilla® Glass 5



CELLULAR*

GSM: 850/900/1800/1900

3G: WCDMA (B1, B2, B5, B8)

LTE FDD: B1, B2, B3, B5, B7, B8, B20, B26, B28

LTE TDD: B38, B40, B41

5G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78

SIM: Nano-SIM + eSIM



DECT*

Frequency: EU: 1880-1900 MHz

BR: 1910-1920 MHz

LA: 1910-1930 MHz

US: 1920-1930 MHz

Other: 1900-1920 MHz Modulation: GFSK



BATTERY

Type: User replaceable 4000 mAh



PORTS

USB: USB-C

CIC: Connector for compatible charging racks and desktop chargers



Release Information





* Available in some product variants

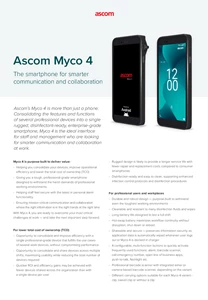

Myco 4 Product Sheet
Myco 4 Product Sheet
Download
Myco Accessories sheet
Myco Accessories sheet
Download
